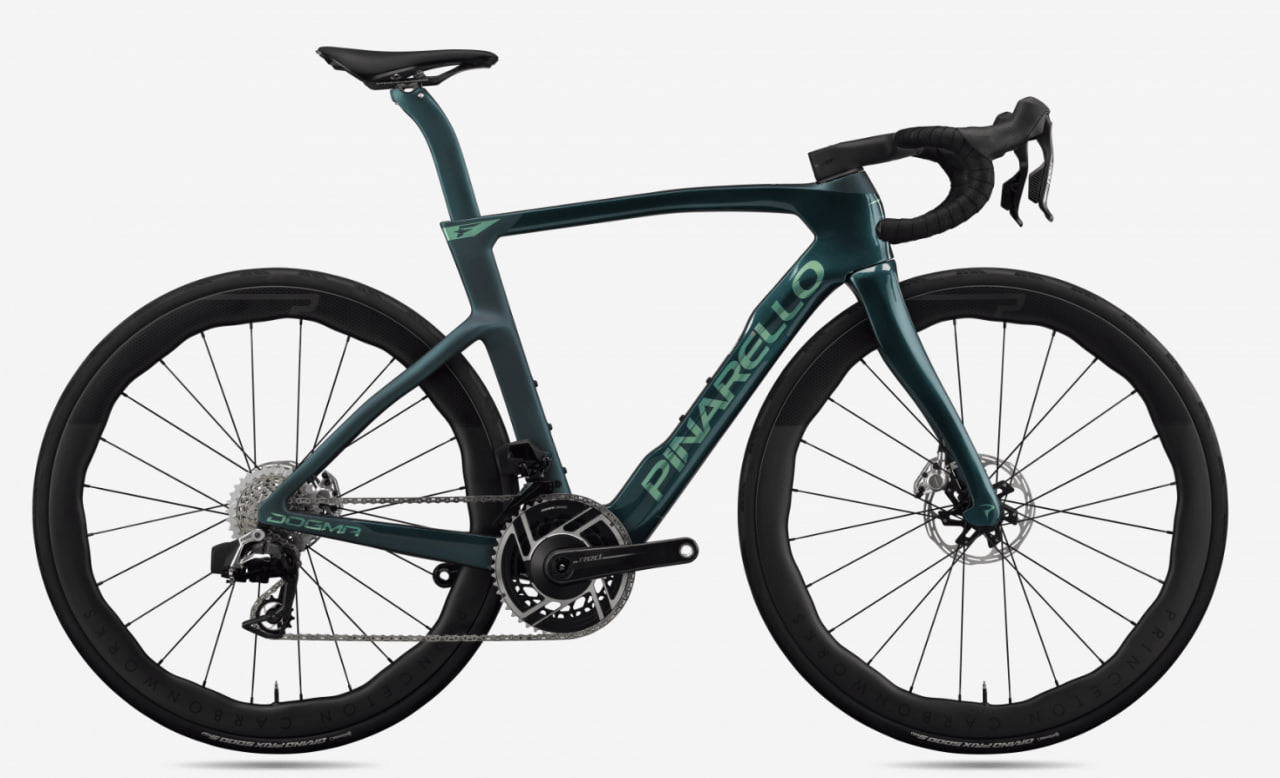

Pinarello Dogma F Frameset

The 2026 Pinarello Dogma F represents the pinnacle of Italian race engineering, designed as an uncompromising, all-around superbike platform. Upgraded with TorayCa M40X carbon fiber, this generation offers superior lateral stiffness and an overall weight reduction over previous iterations while cutting aerodynamic drag (CdA).

🛠️ Custom Dream Build Service: Want a complete bike ready to ride? We offer full custom builds directly in our workshop! Build your ultimate superbike with top-tier components and boutique gems like Gemini integrated cockpits, custom carbon wheels from Sixwheel, 3D-printed Posedla saddles tailored to your anatomy, CeramicSpeed and more.

🎥 Watch our Dream Build in action: Watch on YouTube

Key Technical Highlights

• Frame Material: TorayCa M40X Carbon Fiber with asymmetric design to balance drivetrain torque.

• Aero Refinements: Redesigned down tube with a rotated 3.5° "Aero-Keel" bottom bracket, an 8mm narrower head tube nose, and concealed/integrated thru-axles.

• Fork & Steerer: Slimmer eTICR Onda Fork with integrated ForkFlap™ and an innovative elliptical steerer tube for optimized internal cable routing.

• Weight: ~865g raw frame weight (size 53) with total frameset component savings exceeding 100g over the previous model.

• Tire Clearance: Up to 700x30mm (measured).

• Standards: Italian threaded bottom bracket, 12x100mm / 12x142mm thru-axles, flat-mount disc, electronic groupsets only.
